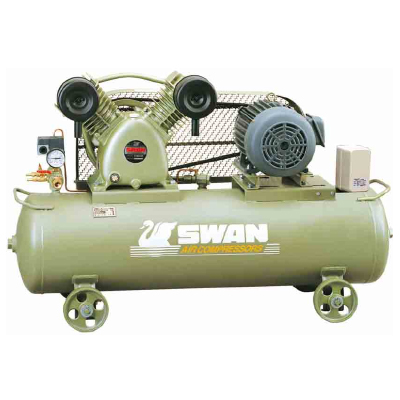

SWAN SVP203 3HP AIR COMPRESSOR
| Motor Power | 2.2 KW 3 HP |
|---|---|
| Working Pressure | 115 psi |
| Working Pressure | 8 kgf/cm2.G |
| Working Pressure | 8 bar |
| Working Pressure | 0.8 Mpa |
| Capacity | 355 l/min |
| Capacity | 0.4 m3 / min |
| Capacity | 13 cfm |
| Dimension L x W x H | 1350x450x840 mm |
| Weight | 110 Kg |
| Weight | 243 lbd |
| Tank Capacity | 106 litter |
Features :
Features :
S SERIES
SWAN air compressor s series are designed with large displacement, big air tank, low oil pressure protection, powder panting air tank, to achieve durable and long service life
LONG SERVICE LIFE
Heat dissipation is one of the key factors of long-lasting air compressors. The unique structure design of Swan bare compressors, enlarged fan and good heat dissipation metal materials are all other significant factors
of prolonging service life.
SMART CONTROL PANEL
The in-time lubricating and no-load start/stop design enable
to eliminate wearing damages to all mechanical parts during
ON/OFF and loading/unloading operations. The friendly
self-diagnosis control system will monitor exactly the running
conditions of the remote compressors and is able to self-adjust
the air discharge quantity flexibly due to different air consumption.
The intelligent design of this multi-protection control system
enables to prevent any accident from happening in time.
AUTO / SEMI-AUTO SELECTION
U type:
The compressor will execute loading or unloading operation
automatically through the pre-set pressure values and pressure
release valve. This control model is recommended for those air
compressors whose duty cycle over 50%.
P type:
To stop and start the compressor by a pre-set pressure switch .
This control model is recommended for intermittent operation
and smaller compressors.
The correct selection of the control model will extend compressor
service life and reduce power consumption.
HIGH AIR DISCHARGE QUALITY, ENLARGE AIR TANK
Supplying stable and sufficient compressed air with larger air tank to guarantee no compressed air shortage.
The Air Tank is treated with sand blast and powder painting to ensure beautiful outlooking and long lasting.
Features :
