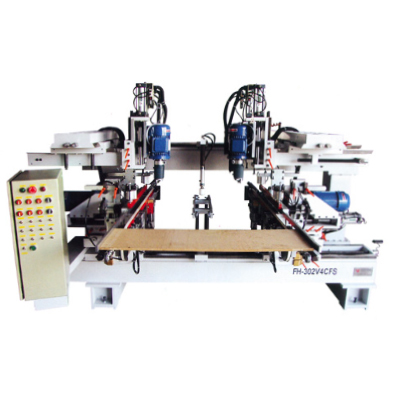

FORMAHERO FH-302V4CFS VERTICAL BORING AND END BORING MACHINE WITH CONVEYOR FEEDING SYSTEM

Code: FH-302V4CFS
FEATURES:
  • Combines 2 horizontal and 4 vertical boring units in the machine for high efficiency drilling Operation
  • Boring units can be operated simultaneously or individually
  • Entire boring cycle can be fast and conveniently accomplished by pressing the foot switch
  • Fitted with 21 spindles on horizontal boring head and 2C-W18 on the 2 vertical boring units

In Stock

Description

Vertical Boring Motor 1Hp x 3 Phase x 5 Units
Vertical Boring 2 head in 1 set
Vertical Boring Motor 1Hp x 3 Phase x 4 Units
End Boring Motor 3Hp x 3 Phase x 2 units
Vertical Boring Head 2C – W18 x 4 pcs
End Boring Head 17L – 32 x 2 Units
Working Length 200mm – 1000mm
Working Width 100mm x 400mm
Control System P.L.C
Machine Dimension (L x W x H) 2600mm x 1800mm x 1650mm
Machine Weight 2200 Kg
